| Technical Specifications | |
|---|---|
| Voltage | 24V / 36V / 48V / 52V / 60V |
| Communication Protocol | UART/CAN |

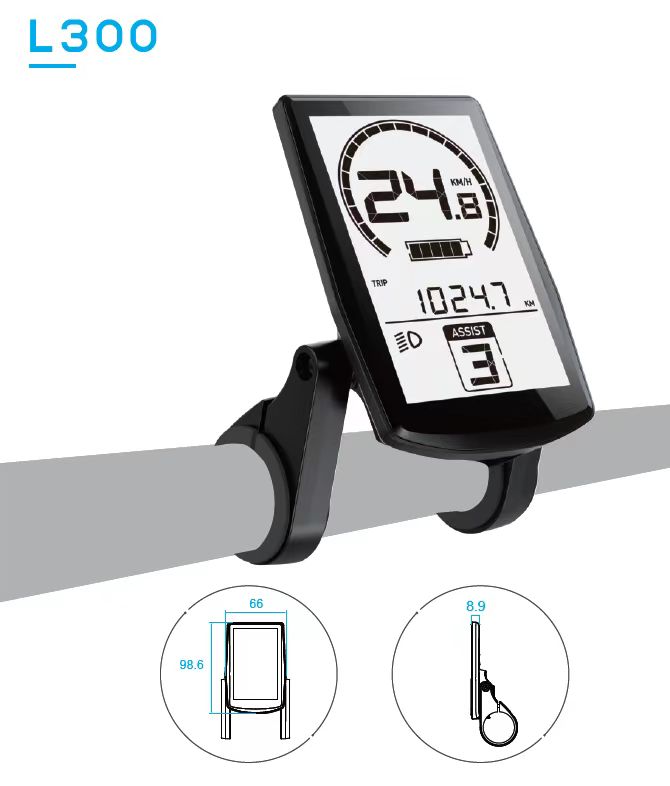

| Display Type | 3.0” LCD |
| PAS Range | 0-3/0-5/0-9 (Adjustable) |
| Installation Diameter | φ22.2mm |
| USB Port | Type-A, 5V 500mA |
| Bluetooth | Optional |
| Cycling APP | Bikewise Pro (IOS / Android) |
| Button | DTK3 (Standard) |
| Features |
|---|
| Current speed, current power |
| Average speed, maximum speed |
| Single mileage, Total mileage |
| Calorie consumption (need to connect to the cycling APP) |
| Environmental protection index (need to connect to the cycling APP) |
| Supported Certificate |
|---|
| IPX6 |
| EN ISO 13849-1:2015&EN15194:2017 |
