| Technical Specifications | |
|---|---|
| Operating Principle | Torque Sensor |
| Voltage | 5V |
| Torque Output Voltage Range (DCV) | 1.3~4.8V |
| ZTV origin voltage | 1.3±0.15V |
| Torque signal slope | 35mv/N.m |
| Cadence Signal (signal/cycle) | 24 |
| Duty Ratio | 60% |
| Axostyle | JIS |
| Color | Black |

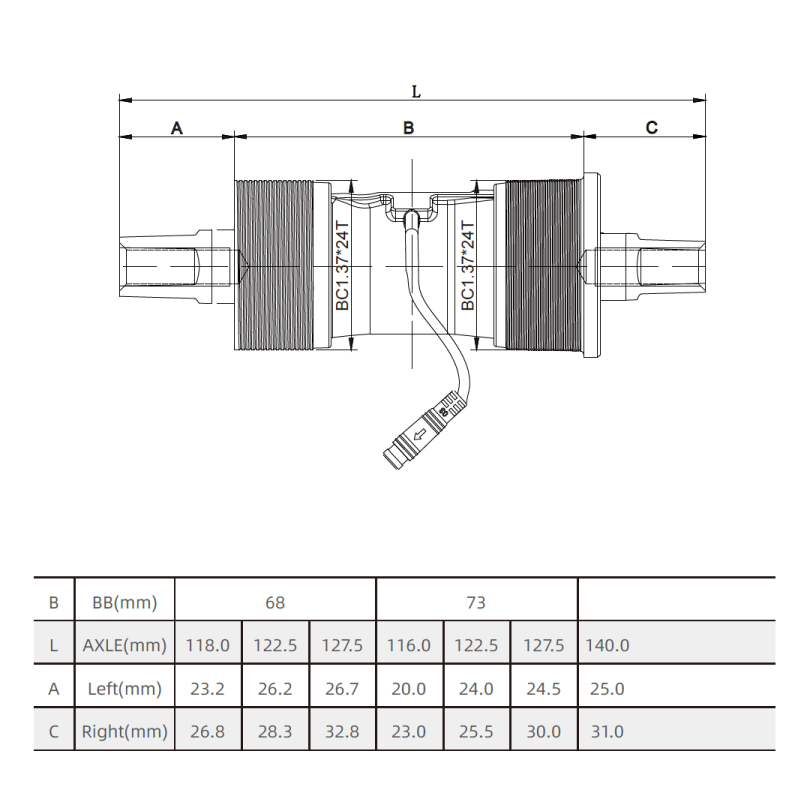

| Weight | 0.28kg(68/122.5mm) |
| Operating Temperature | -20 ~ 85℃ |
| IP | IP57 |
| Certificate | EN15194: 2017, ISO13849-1 |
| patent | Chinese patent |
